Expansion module for L-CON-LOG series. 4 x Analog inputs, 2 x Analog Output, Digital input 4 x, 4 x Digital output

Name: Expansion module for L-CON-LOG series. 4 x Analog inputs, 2 x Analog Output, Digital input 4 x, 4 x Digital output
Brand: Danbit A/S
SKU: L-CON-LOG-AD16C+
Price: 1650 DKK
Availability: InStock

Product number L-CON-LOG-AD16C+Category Moduler / Tilbehør

1,650.00 kr

Ekskl. moms

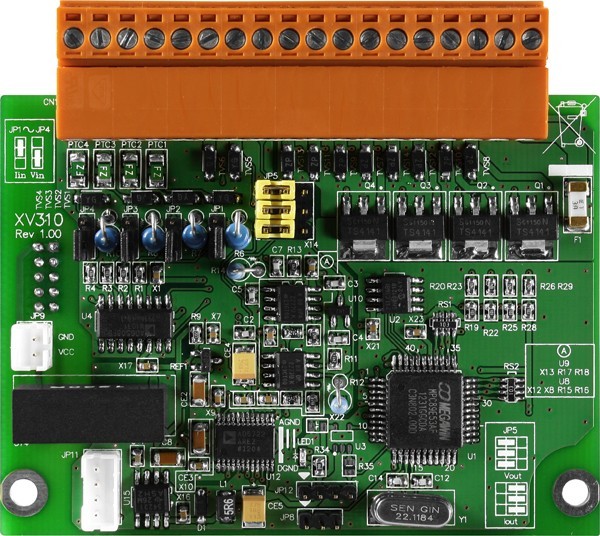

Multifunction concealed board
with 4 x AI, AO x 2, 4 x DI, 4 XDO
individual channel configuration
Jumper selectable voltage- or current input
Broken kabeldetektion by current measurement
Configurable settings for the initial value
digital input channels can be used as 32-bit counters
120 VDC surge protection to the analog input
60 VDC surge protection for digital input
Overload protection for digital output
Short circuit protection for digital output

Quantity

Physically in stock

Get Volume Offer DOWNLOADS

Ask a question

Specifications

Indgang	4 stk. kontakt ( slutte ) 4 stk. ±1 V, ±2.5 V, ±5 V, ±10 V, ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA (Jumper Selectable)
Udgange	2 stk. 0 V ~ +5 V, ±5 V, 0 V ~ +10 V, ±10 V, 0 mA ~ +20 mA, +4 mA ~ +20 mA (Jumper Selectable) 4 stk. 650mA maks. 10 til 40 volt Open collector

Is a multifunction expansion card that provides 4 analog input channels, two analog output channels, 4 digital input channels and four digital output channels. This provides a programmable input range on all analog input channels (+/- 1 V +/- 2.5 V, +/- 5V, +/- 10V, +/- 20 mA, 0 ~ 20 mA or 4 ~ 20 mA), analog output channels are 12 bits at +/- 5V, +/- 10 V, 0 ~ 20 ~ 4 mA or 20 mA. Each analog input channel can be configured to an individual area and provides a high surge of 120 VDC. The voltage and current inputs / outputs can be selected as the jumper.
