Expansion module for L-CON-LOG-x series. 8 digital inputs, Wet, 0 - + 50VDC, 8 x Digital outputs (OC) + 50VDC 700mA

Name: Expansion module for L-CON-LOG-x series. 8 digital inputs, Wet, 0 - + 50VDC, 8 x Digital outputs (OC) + 50VDC 700mA
Brand: Danbit A/S
SKU: L-CON-LOG-D8I+
Price: 948 DKK
Availability: InStock

Product number L-CON-LOG-D8I+Category Moduler / Tilbehør

948.00 kr

Ekskl. moms

The integration module with screw terminal
8 x digital inputs 0 - + 50VDC
All inputs with 32 bit counter (50 Hz)
8 x digital outputs, the Open Collector + 50VDC 700mA / channel

Quantity

Physically in stock

Get Volume Offer DOWNLOADS

Ask a question

Specifications

Indgang	8 stk. logisk 0: maks. 1 volt og logisk 1: +3.5 ~ +50 VDC
Udgange	8 stk. open collector udgange maks. 700mA/50V

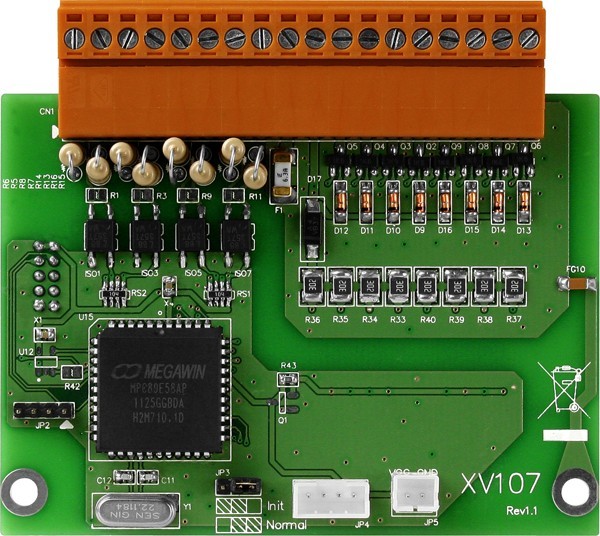

The board provides eight channels of digital input and 8 channels for digital output, each having photo coupling insulation. It supports sink output with short circuit protection, while the entrance is the source type. All input channels can be used with 32-bit counters. There are options for configuring the initial output values. 4kV ESD protection and 3750 VDC isolation within the module are also supplied.
