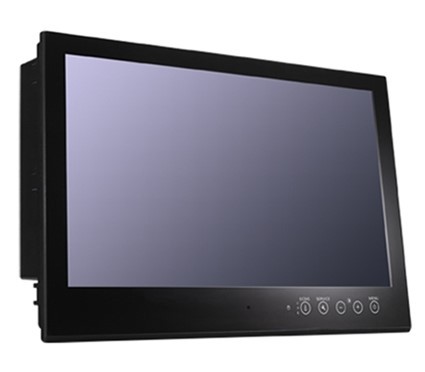

26 "TFT monitor with 300-nits, Dust and set seal IP54 in the front, IP20 rear, Dual AC / DC
44,652.00 kr
Ekskl. moms
26 "TFT metal monitor, LED backlight, IP54
1920 x 1200
300 nits, 1500: 1, 16:10
Response time: 15Ms

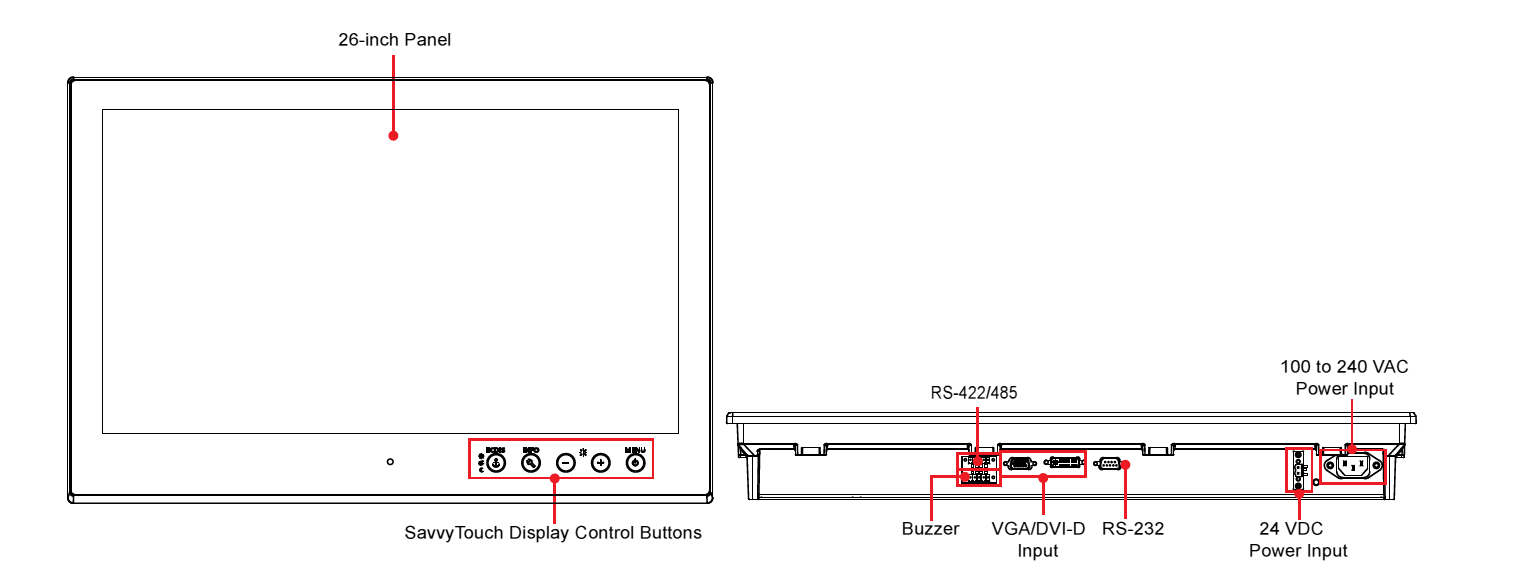

Display angle: 176 ° / 160 ° < br> 1 x DVI-D (29-pin DVI-D connectors female)
1 x VGA (15-pin D-sub connector female)
1 x RS232 (DB9 male)
1 x RS232 / 422/485 (software selected terminal block)
Supply: 100 to 240 VAC, 24 VDC (18 to 30 V)
-15 to 55 ° C (5 to 131 ° F)
Desktop, Panel mounting, VESA mounting
CISPR 32, FCC Part 15B Class A
EN 55032/24
621 x 444 x 90 mm
weight: 12,650 g
Optional: RS-232: TxD, RxD , RTS, CTS, DTR, DSR, DCD, GND
Optional: RS-422: Tx +, Tx-, Rx +, Rx-, GND
Optional: RS-485-2w: Data +, Data, GND < br> Optional: RS-485-4w: Tx +, Tx-, Rx +, Rx-, GND
Quantity
Ask a question
close
Specifications
| Antal farver | 16.7M (8-bit/color) |
|---|---|
| Certifications | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V |
| Data | 5, 6, 7, 8 |
| Dimensioner | 621 x 444 x 90 mm |
| Driftstemperatur | -15 to 55°C (5 to 131°F) |
| IP-Tæthed | IP54, front IP20, rear |
| Kontrast | 1500:1, 300 cd/m2, 16:10 |
| Opløsning | 1920 x 1200 |
| Porte | RS-232 ports x 1 (DB9 male) RS-232/422/485 ports x 1, software-selectable (terminal block) |
| Weight | 12,650 g |
