PoE+ extender. Go beyond the 100 meter limit. Sends PoE & Data Through
800.00 kr
Ekskl. moms

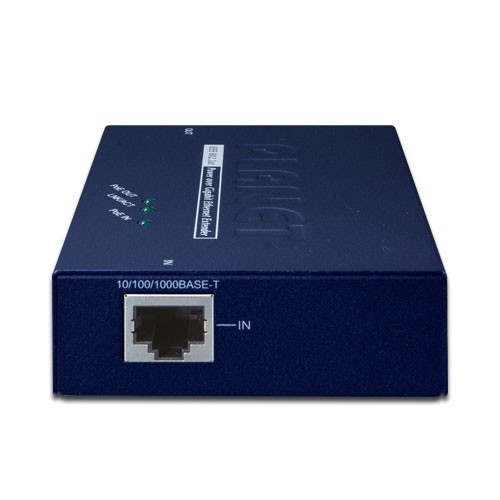

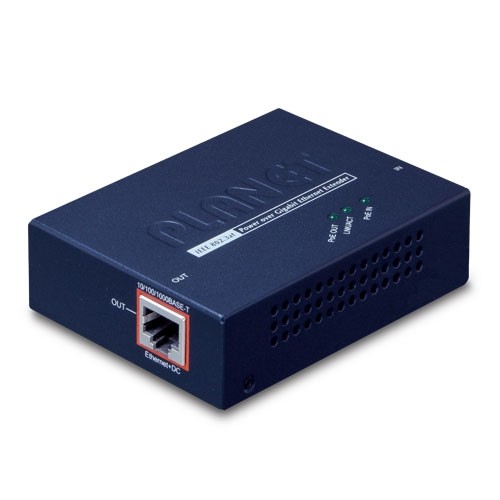

10/100 / 1000Mbit PoE Network Extender
Extend the network cable with PoE over the magic 100 meters
4 pieces. Extenders provide a maximum distance of 500 meters
Extenders are powered from PoE and pass PoE on to the next Extender
Dimensions: 94 x 70 x 26 mm
PoE In: Max 30.8 Watts
PoE Out: Max 26 Watts
Weight: 189g
Quantity
Physically in stock
Ask a question
close
Specifications
| Standarder | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3x Flow Control |
|---|---|
| Stik | 2 stk. RJ45 hun stik så den kan sættes imellem eksisterende lokalnet forbindelse |
| Strømforsyning | Kræver ingen strømforsyning, forsynes af PoE |
| Udgangsspænding | 48 VDC |
With Eth-Poe boost, it is possible to expand the POE connection from the normal 100 m up to 300 m. For every 100 m, a Eth-Poe boost must be connected, but since Eth-Poe boost becomes power supplied by Poe, it can be placed most places.
- Compliant with IEEE 802.3at Power over Ethernet Plus PSE and PD standard
- Backward compatible with IEEE 802.3802.3af Power over Ethernet
- Complies with IEEE 802.3/802.3u/802.3ab 10/100/1000BASE-T
