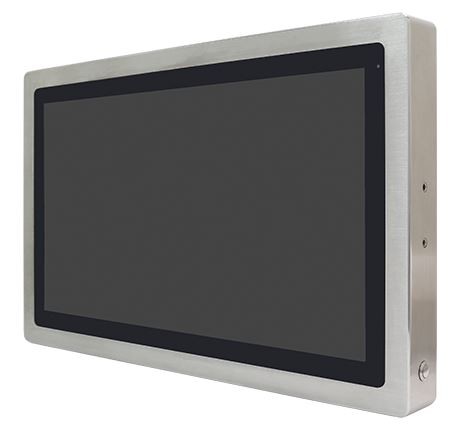

Panel PC 21.5" with 1000 nits, suitable for sunlight, with touch, stainless steel housing full IP66/IP69K
Call +45 56 66 20 20 for price
Ekskl. moms
21.5" Stainless steel Panel PC
TFT 1920x1080
6th Gen. CPU i3/i5 CPU support
Max 16GB RAM
M12 8 pin connectors
2x USB 2.0, 1 x USB 3.0
1 x COM
1 x CAN
1x LAN (POE IS OPTION)
Flat Front design
Stainless steel grade 304. (option 316)
Touch option Resistive, Projected Capacitive, Glass
ON/OFF on side
Vesa mount 100x100, Option Yoke Mount

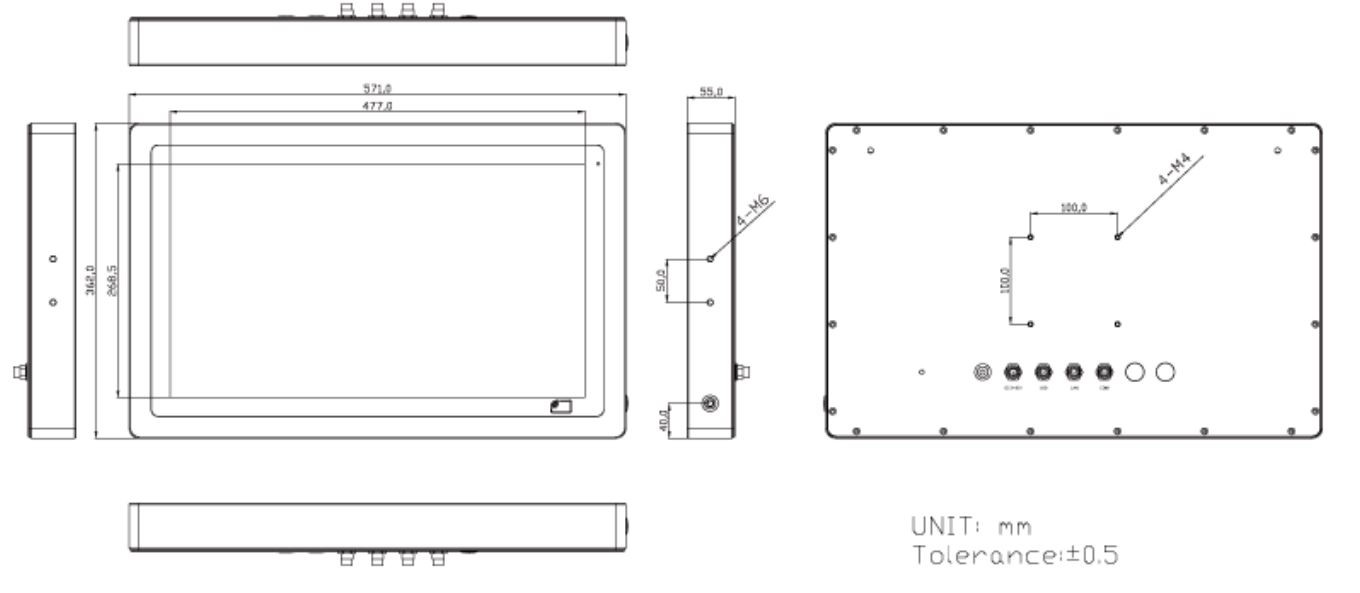

571x362x55 mm
10KG
Quantity
Ask a question
close
Specifications
| CPU | Core i5-6300U or i3-6100U |
|---|---|
| Antal farver | 16.7M |
| Approval | CE/FCC class A |
| Driftstemperatur | 0~50 degrees |
| Ethernet | 1xM12 8 pin LAN |
| Forsyning | 1xM12 3 Pin DC 9~26V 43Watt |
| Hukommelse | 1 x 260 pin SO-DIMM up to 16GB DDR4 2133 MHz |
| Kontrast | 3000:1 |
| LCD | 21.5"TFT 1920x1080 |
| Compositions | 304 Stainless steel default. OPTION ! 316 |
| OS SUPPORT | windows 7 and 8.1 embedded, Windows 10IoT ENT LTSB |
| Porte | 1xM12 8 pin COM1, RS232/422/485 default RS232 |
| Synsfelt | 178(H)/178(V) |
| Touch | OPTION! Resistive, Capacitive, Glass, USB light transmission reduce 20% |
| USB | 1xM12 8 pin USB 2.0 |
Produced on order. So you can even specify whether it should be to sunlight or not. CPU model, SSD size.
Other models around rog solutions can be offered
