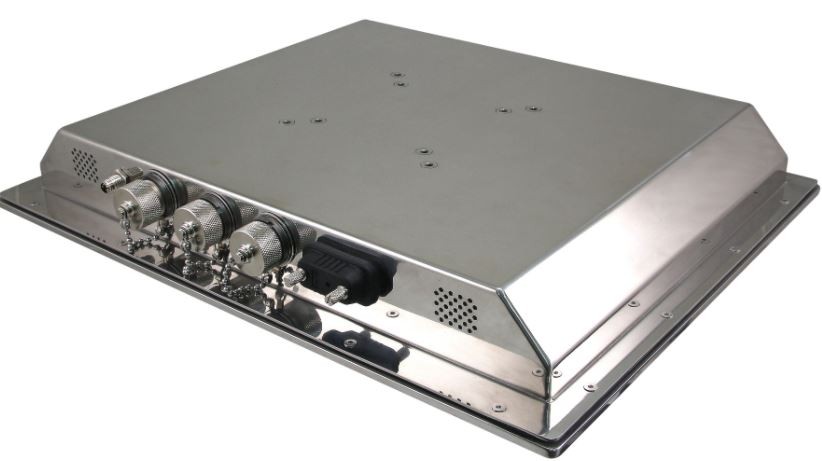

15" Apollo Lake SoC Mobile Processor Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65 & IP-X9K
Call +45 56 66 20 20 for price
Ekskl. moms
Processor Intel® Celeron® Processor N3350
Intel® Apollo Lake SoC with integrated chipset
Projective capacitive touch screen
Full Flat Design
Waterproof ON/OFF Button
2 x USB
1 x COM (DB9)
1 x LAN Metallurgy Waterproof Connector
Full System IP65, IPX9K
Addons must be ordered separately: NFC / WiFi / auto dimming / high brightness Solution
Quantity
Ask a question
close
Specifications
| CPU | Intel Atom N270 1.6GHz |
|---|---|
| Chipset | Intel 945GSE + ICH7M |
| BIOS | AwardBIOS |
| Dimensioner | 310 mm (H) |
| Drev | Monteret med 160 GB SATA harddisk |
| Driftstemperatur | 0°C til 50°C |
| Flash | 1 x CF slot |
| FSB | 533 MHz |
| Hukommelse | 1 x 200-pin DDR SO-DIMM. Monteret med 1GB SO-DIMM RAM |
| Kabinet | IP65 tæt rustfrit stålkabinet |
| Netværk | 1 x Realtek RTL8111C. 10/100/1000 Mbit. RJ45 stik |
| OS SUPPORT | Understøtter Windows XP, XPe, Windows 7 (ikke Windows 8) |
| Porte | 2 x RS232/422/485 via 8-pins stik |
| Skærm | 15” TFT. 1024 x 768. 350 cd/m2. Resistive touch |
| Strømforsyning | 12VDC (100 - 230 VAC adapter) 2,1 A. Maks. 30W |
| USB | 1 x USB 2.0. 2 x USB 2.0 via 10-pins stik |
| VGA | Integreret Intel |
| Weight | 8 kg |
| Watchdog | Programmerbar Watchdog, maks. 255 sek |
System
Processor Intel® Celeron® Processor N3350
System Chipset Intel Apollo Lake SoC integrated
System Memory 1 x 204-pin DDR3L 1866MTs SO-DIMM up to 8 GB
I/O Chip EC ITE IT8528E
Watchdog Timer H/W Reset, 1sec. ~ 65535sec./1sec.step
H/W Status Monitor Monitoring SYSTEM Temperature and Voltage with Auto Throttling Control
SBC EBM-APL
Expansion
Expansion 1 x Mini PCIe
Storage
Storage 1 x 2.5" Drive Bay
Panel
LCD Size 15", 4:3
Display Type XGA
Resolution 1024x768
Pixel pitch 0.297mm(H) x 0.297mm(V)
Luminance 300 cd/m²
Contrast ratio 2000
Viewing angle 88 (U), 88 (D), 88(L), 88 (R)
Response time 16ms
Backlight LED
Touch
Type Projective Capacitive
Touch Light Transmission 87%
Touch Controller Onboard USB touch (EETI)
I/O
USB 2 x USB 2.0
SATA 1 x SATA III
COM Port 1 x RS-232/422/485
Other 1 x WiFi (Optional)
Display
Chipset Intel® Valleyview SoC integrated Graphics
Supports dual display
Resolution HDMI: Max. resolution 3840x2160 @ 30Hz
LVDS: Max. resolution 1920x1080 @ 60Hz
eDP: Max. resolution 4096x2160 @ 60Hz
Audio
Chipset Realtek ALC892
Audio Interface Line-Out
Speaker Output 2 x 5W
Ethernet
Chipset 2 x Intel® I211AT
Ethernet Interface 10/100/1000 Base-Tx GbE compatible
LAN Port 1 x RJ-45
Mechanical Environmental
Power Type AT/ATX (ATX is default setting)
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity 20% ~ 80% Relative Humidity, Non-condensing
Weight 6.42 Kgs
Mounting
Kit Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm
IP
Rating Whole System IPX9K, IP65
Vibration
est With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis
Shock Test With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine, 11ms
System Fan
Fanless
Construction
Front Silver Stainless
Rear Silver Stainless
Dimension
383 x 307 x 52.5 mm
Certifications
Certification Information CE
FCC Class B
Software Support
OS Information Win10
Power Requirement
Power Connector Lockable DC Jack
Power Requirement +12V ~ +26V
Adapter Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W Adapter (24V @ 2.5A Adapter) AC-DC Adapter
