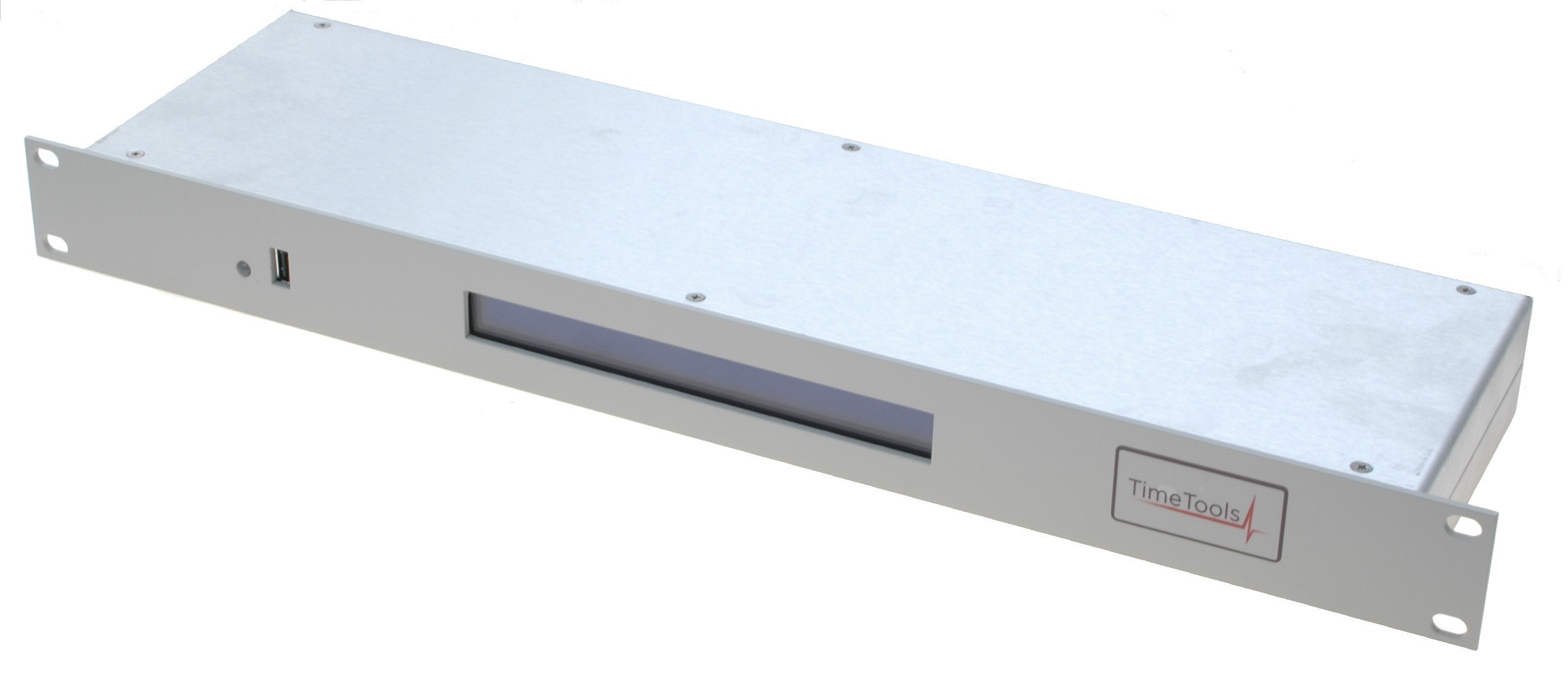

Atomic clock, GPS controlled time server NTP Server Network. Dual LAN with TCXO
20,244.00 kr
Ekskl. moms
Atomur- controlled GPS time server to the network 32
channel receiver which reduces the risk of signal loss
TCXO (Temperature Compensated X-tal Oscillator) in order to keep the time in the absence of GPS signal
10 / 100BaseT redundantly Ethernet
Low power consumption only 7W
230VAC 50-60Hz 0.1A
Operating temperature 0 to 50 °
Supplied with multi-antenna, wall mount and 30 m RG58 aerial cable
Quantity
Ask a question
close
Specifications
| Andet | Timing: GNSS Accuracy: 15 nsec (15x10-9 sec, GPS Lock) NTP Accuracy (GPS Lock): usec (3x10-6 sec) TCXO Holdover 24 Hours (after 24 hrs continuous GPS lock): ±4.3 msec (25°C) ±164 msec (0°C-40°C) |
|---|---|
| Antenne | T-3740 GNSS Multi-Constellation Antenna |
| Dimensioner | 483 x 145 x 44 mm (19.0” x 5.71” x 1.73”) |
| Driftstemperatur | 0-50°C |
| Forsyning | 230VAC 50-60Hz 0.1A |
| GPS | GPS/GNSS Timing Receiver 32 Channel Multi-GNSS receiver. GPS, GLONASS, Beidou, Galileo*1. Time-Receiver |
| Interface | Dual 10/100 Mbit Base-T, RJ45, Auto-Sensing Network Interfaces. TNC RF Connector For Active GPS/GNSS Antenna. USB port for firmware updates. RS232 Console Port for Configuration and Status. Second RS232 (shared) Port for serial time code output. |
| Kabel | 30m RG58 Cable. |
| Kabinet | 1U High 19" Rack-mount, Aluminium |
| LED | 40 character x 2 line LCD display. Red/Green Alarm LED. |
| Protokol | Internet Protocol (IP) IPv4, IPv6. Timing Protocols: NTP v2 (RFC 1119), NTP v3 (RFC 1305), NTP v4 (RFC 5905). SNTP v3 (RFC 1769), SNTP v4 (RFC 2030). NTP Peering, NTP Broadcast. NTP MD5 Authentication. |
| Software | Flash-Based Linux Operating System with PPS Extensions. |
| Weight | 1.2Kg |
GPS-controlled time server for network
time server delivers very high accuracy. The built-in GPS receiver detects 32 different satellites and provides accuracy of better than 3 microseconds, Italy although taking account of normal delays in the network, or 15 nanoseconds. It is therefore well suited as a real source of various industrial systems with high precision requirements.
Compatible with most operating
Can be used for all products that support protocols Network Time Protocol (NTP), and Simple Network Time Protocol ( SNTP), Italy that includes Windows, Linux, Unix, Novell and most switches and routers from such. Cisco.
Robust aluminum construction with no moving parts for long life
