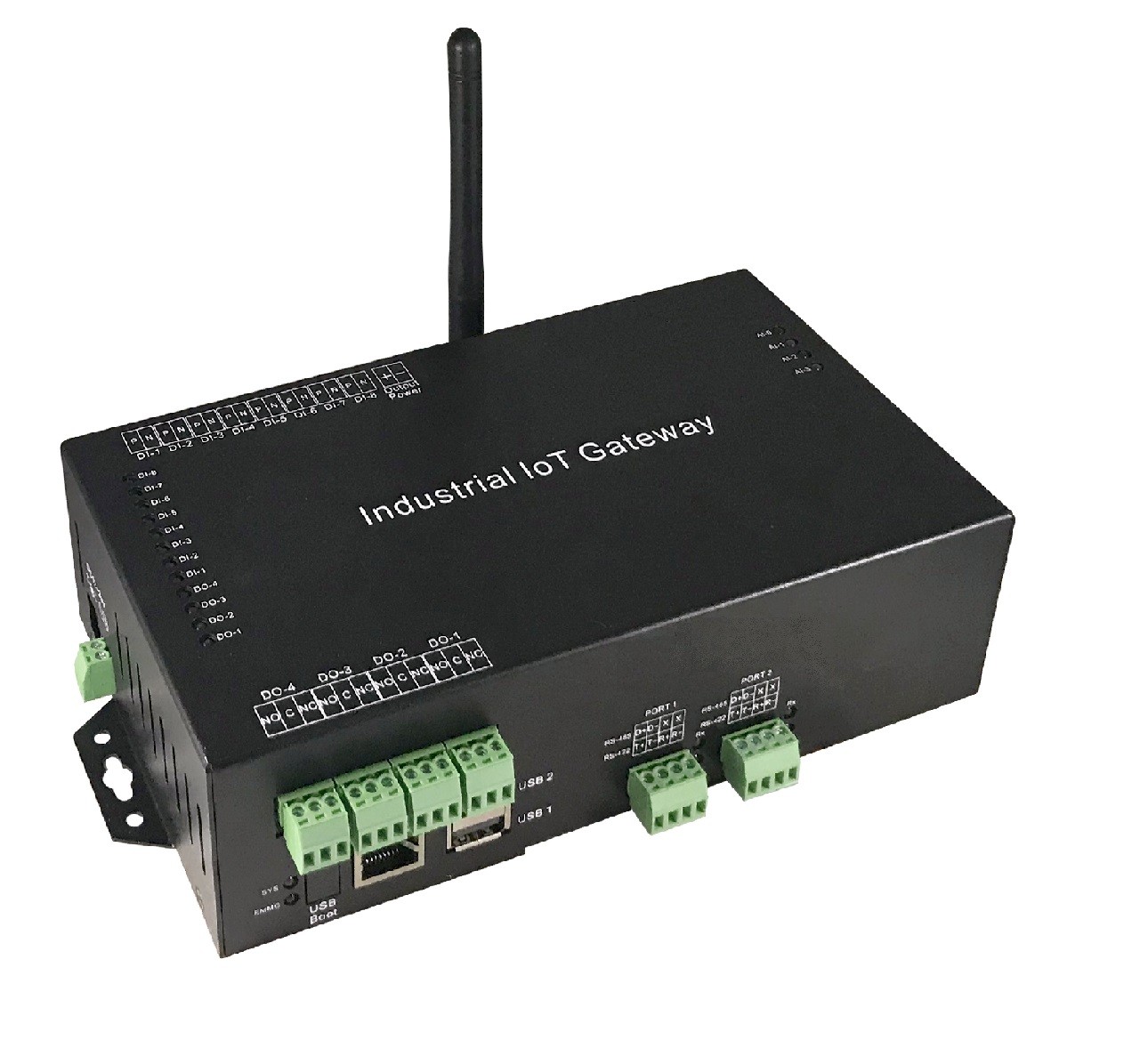

Programmable Industrial Controller with 8 Digital inputs and 4 Relay outputs
5,450.00 kr
Ekskl. moms
ARM Cortex - A53 CPU , 1.2 GHz
RAM 1Gb SDRAM
16GB of memory
2 x RS232/422/485
8 x DI and 4 x relay outputs
DC input 9-32V
4G module
OS : Linux Raspbian
User need knowledge of linux and programing
Documentation for DI/O and 4G module
Quantity
Physically in stock
Ask a question
close
Specifications
| CPU | ARM Cortex - A53 CPU , 1.2 GHz |
|---|---|
| Andet | Real Time Clock |
| Certifications | RoHS, FCC, CE |
| Dimensioner | 200 x 120 x 50 mm |
| Driftstemperatur | -10℃ to 70℃ |
| Hukommelse | 1 GB SDRAM 16 GB EMMC Flash ROM |
| Input | 8 x Digital inputs Dry contact(Open/Close) and Wet contact (Low 0-3V/High 10-30V) DC 9~32 V , 1000 mA 800mA@12V, support DC Jack & Terminal Input |
| OS SUPPORT | Raspbian |
| Output | 4 x Relay 120VAC @ 10A , 240VAC @ 7A , 24VDC @ 10A |
| Porte | 1 x RJ45, 2 x RS232/422/485, 1 x HDMI, 2 x USB2.0 |
4G Raspberry Pi based controller for industrial IOT purposes.
This controller is very flexible in functionality.
Controller runs linux does not require any OS license.
Built in EMMC memory makes sure that OS runs without any issues and there is option expand memory with SD card.
Plese note this controller requires programing and linux knowalge. test
