Splitter for USB barcode scanner or keyboard for 2 x PC. 2 x USB output or USB and RS232 output

Product number BAR-SPLITCategory RFID / Barcode / Magnet stribe / TAGs / POS
4,424.00 kr
Ekskl. moms

USB 2 x PC splitter
2 x DB9 special cable output (DB9 to USB)
1 x RS232
USB Power (5VDC)
Speeds from 1200bps to 115200bps with select
OS support: Windows OS, MAC OS X, Linux
Incl. 2 pcs. DB9 male to USB-A male cable 1,2m
Operating temp. 0 - + 50 ° C

Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål



Specifications

Dimensioner 140mm x 91mm x 32mm
Driftstemperatur 0 to 50 °C
Forsyning Power: Single or Dual USB Power (5V DC), Auxiliary Power Input DC 9V~12V (Recommand 1A over)
Kabel USB Cable Type: DSUB-9 Male to USB-A Male, 1,2m
LED Power, RX (from Scanner), TX (to PC)
OS SUPPORT Windows OS, MAC OS X, Linux

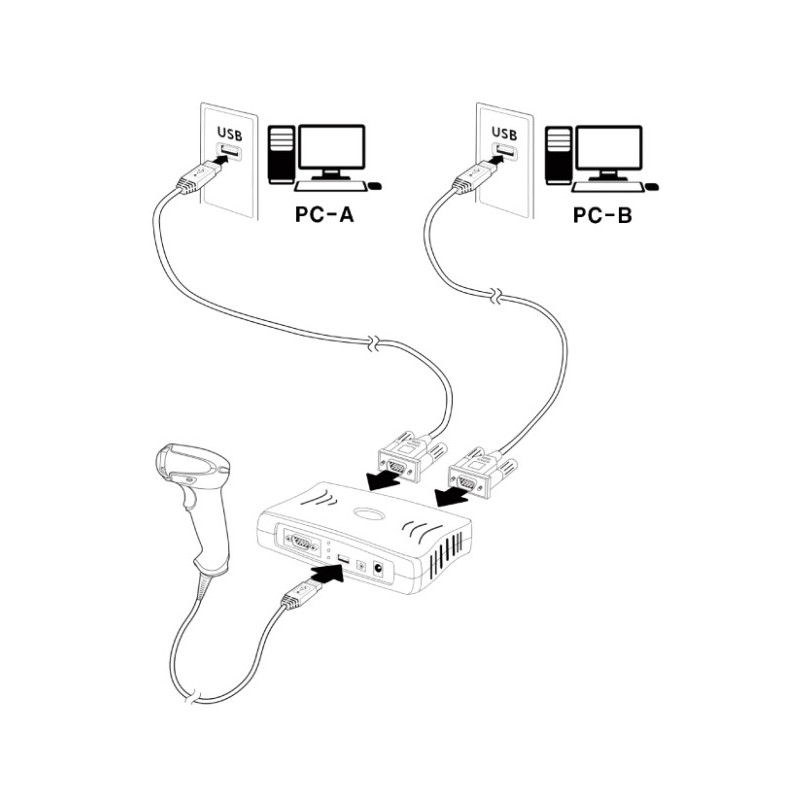

BAR-SPLIT is designed to transmit USB barcode scanner or USB keyboard data to two PC simultaneously.

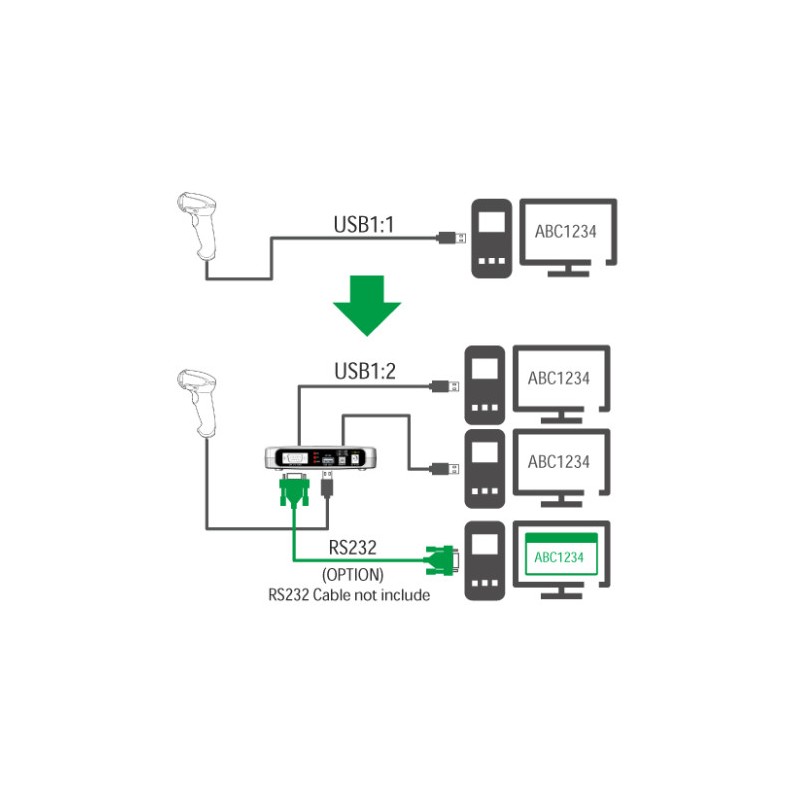

And BAR-SPLIT can convert USB Barcode scanner data to RS232 serial data and transmit it also.
Therefore, it supports two USB data output and one RS232 data output at the same time.
The RS232 output can be selected from 8 kinds of baudrate speeds from 1200bps to 115200bps with the dial switch.
