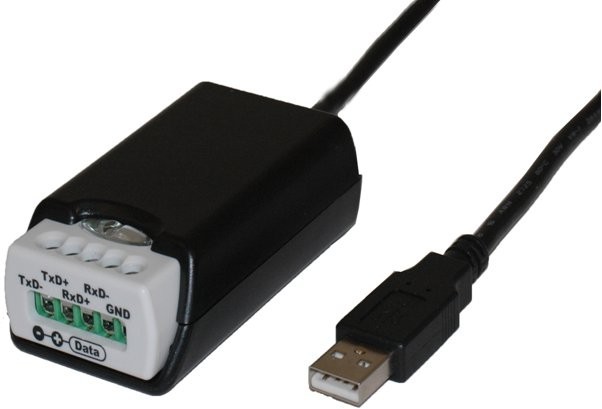

USB to 1 x RS485/422 adapter. FTDI chip. Up to 921.6kbps. 1.8 meter USB cable
535.00 kr
Ekskl. moms
USB to 1 x RS422 / RS485, w./ screw terminal
Max speed up to 921.6 Kbit/s - RS422 / 485 port
Select port type from DIL switch and jumper
Default set to RS422
Supports Win7, 8/8.1, 10, 11, Server 2008 R2, Server 2012 R2, 2022
(WHQL Certified)
Quantity
Physically in stock
Ask a question
close
Specifications
| Kabel | 1,8 m |
|---|---|
| Stik | 1 x DB9 og skrueterminal |
Conversion from RS422 to RS485:
S1 to ON
S2 to OFF
S3 to ON (No echo)
Jumper from right to left viewed from the cable end:
16 - 13 - 10 - 7 - 4 - 1
17 - 14 - 11 - 8 - 5 - 2
18 - 15 - 12 - 9 - 6 - 3
Jumper:
23 Jumper is 120 ohms - move forward to 12
65 Jumper is biased to D+ - move forward to 45
98 is bias to D- - move forward to 78
The remaining ones should be disabled (Do not move)
USB to serial converters are ideal for use where serial ports are not available, for example on newer laptops and desktop PCs/servers. This can be a significant saving compared to having to convert RS485 systems to USB. All models are supplied with loose or mounted USB cable. The converters support both OHCI (Open Host Controller Interface) and UHCI (Universal Host Controller Interface) and some models have optical isolation up to 2000V. Maximum speed up to 921.6 Kbit/s on the RS422/485 port.
Log in to www.danbit.dk. When you have the item on the screen, DOWNLOADS will be active and you can download technical information.
