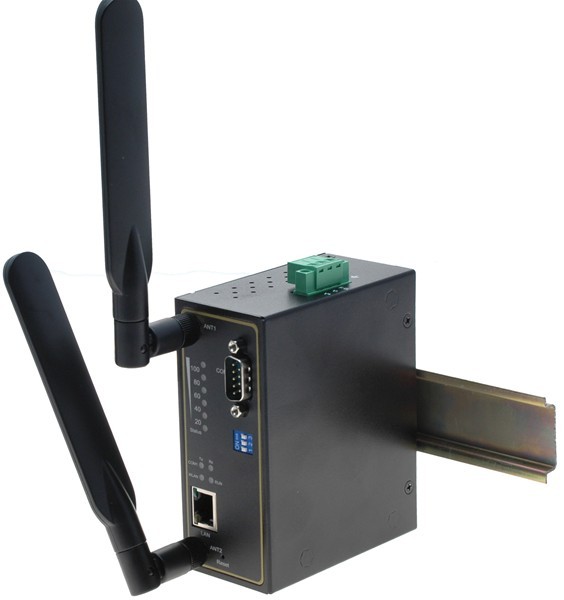

2 Ports serial port server, 2 x RS232 / 422/485, LAN and WiFi. Serial Device Server over Ethernet. 9 - 48VDC.
4,090.00 kr
Ekskl. moms
External COM ports via Ethernet and Internet
Serial device server to RS232/422/485 with WIFI
Quantity
Physically in stock
Ask a question
close
Specifications
| Administration | Indstilles over netværk via http, Telnet konsol eller Windowsprogram |
|---|---|
| Driftstemperatur | -10 – 60 °C |
| Kabinet | IP50-tæt metalkabinet i format 47 x 110 x 90 mm (H x B x D) |
| Montering | DIN skinne |
| Porte | To serielle porte, der kan bruges frit som RS232, RS422 eller RS485. Hastigheder fra 110 bit/s til 921 Kbit/s, Databit:5/6/7/8, Stopbit:1/2. Paritet: Lige/Ulige/Ingen |
| Protokol | Pv4, ICMP, TCP, UDP, DHCP Klient, SNMP, SMTP, HTTP, DNS, NTP, RADIUS, RFC2217, WPS |
| Signaler | RS232: TxD, RxD, RTS,CTS, DTR, DSR, DCD, GND. RS422: TxD+, TxD-, RxD+, RxD-, GND. RS485 2-leder: Data+, Data-, GND. RS485 4-leder: TxD+, TxD-, RxD+, RxD-, GND |
| Software | COM driver til Windows XP, 2003, Win 7 32/64 bit og Win 8 |
| Stik | Serielle porte: 2 x DB9 han. Ethernet: 1 x RJ45 hunstik og 1 x R/SMA stik til medfølgende antenne |
| Strømforsyning | 9 ~ 48 VDC via terminalblok (forbrug under transmission ca. 5,85 watt). Leveres uden strømforsyning benyt DC24V625MA-D |
Wireless serial port server with large temperature range for WiFi and RJ45. For LAN and / or Internet. The wireless network port makes it easy to install network access to serial devices, where there is no wired network. ETH2SER-A + RL is a serial port converter for WLAN Ethernet network, for example. LAN or Internet. The redundant network connection ensures continued operation if the primary network connection fails. The serial ports configured as RS232, RS422 or RS485 and works at speeds up to 921 Kbit / s. Supports both 2.4GHz and 5GHz WiFi.
