Modbus over Ethernet, Modbus box to box, RS232 / 422/485 Modbus Ethernet

Ports 2 MODBUS serielportserver 1 x RS232 + 1 x RS422 / 485th Serial Device Server Box Box option

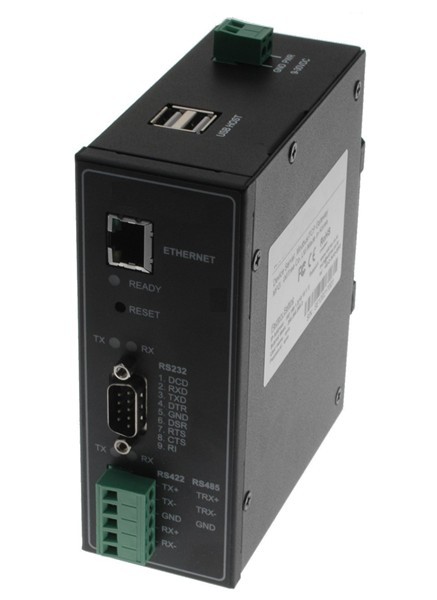

Name: Ports 2 MODBUS serielportserver 1 x RS232 + 1 x RS422 / 485th Serial Device Server Box Box option
Brand: Danbit A/S
SKU: ETH2MOD
Price: 2893 DKK
Availability: InStock

Product number ETH2MODCategory Serial Port Servers

2,893.00 kr

Ekskl. moms

Modbus over the Ethernet or Internet
MODBUS server with 1 x RS232 and 1 x 422/485
Can run Device to Device
0/100 Mbps Ethernet port, auto MDI / MDIX, 10/100 auto, 1500V magnetic insulation only on
RS485 RS232 Modbus ASCII / RTU port, 1 RS422 / 485 Modbus ASCII / RTU port, 16V / 400W TVS isolated, RS485 automatic line control
9 ~ 30VDC power input, IP30 enclosure , DIN rail mounting structure, USB port (Modbus serial port expansion and capture of memory)

Quantity

Physically in stock

Get Volume Offer DOWNLOADS

Ask a question

Specifications

Administration	Web interface
Driftstemperatur	-40 – 85 °C
Kabinet	IP30-tæt metalkabinet i format 49 x 130 x 105 mm (H x B x D)
Montering	DIN skinne
Netværk	1 x 10/100 Mbit kablet Ethernet netværksport.
Porte	1 x RS232 port og 1 x RS422/485 port. Hastigheder fra 150 bit/s til 921 Kbit/s, Databit:5/6/7/8, Stopbit:1/2. Paritet: Lige/Ulige/Ingen
Protokol	TCP/broadcast TCP/server, TCP/klient, UDP/server, UDP/Klient, Modbus/ASCII, Modbus/RTU og Master/Slave
Signaler	RS232: TxD, RxD, RTS,CTS, DTR, DSR, DCD, GND. RS422: TxD+, TxD-, RxD+, RxD-, GND. RS485 2-leder: Data+, Data-, GND
Stik	RS232 port: DB9 han. RS422/485 port: terminalblok. Ethernet: 1 x RJ45 hunstik
Strømforsyning	9 ~ 30 VDC via terminalblok; forbrug ca. 10 watt afhængigt af tilsluttet ekstra udstyr via USB bussen
USB	2 stk. USB 2.0 porte. Bruges til udvidelse, samt gemme/hente opsætningen via en USB nøgle

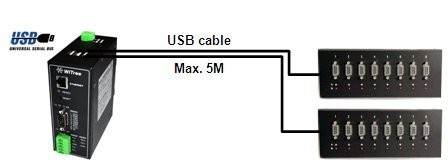

ETH2MOD is a MODBUS serial port server via Ethernet network that can be extended with several serial ports. The extension consists in that the device supports USB to serial converters based on FTDI circuit (see www.ftdichip.com), then up to 16 additional ports can be added and these ports have the same opportunities for management and configuration as they built. Setup can via a USB key that moves between two paragraphs. ETH2MOD, downloaded or saved as a backup. With very wide temperature range.
