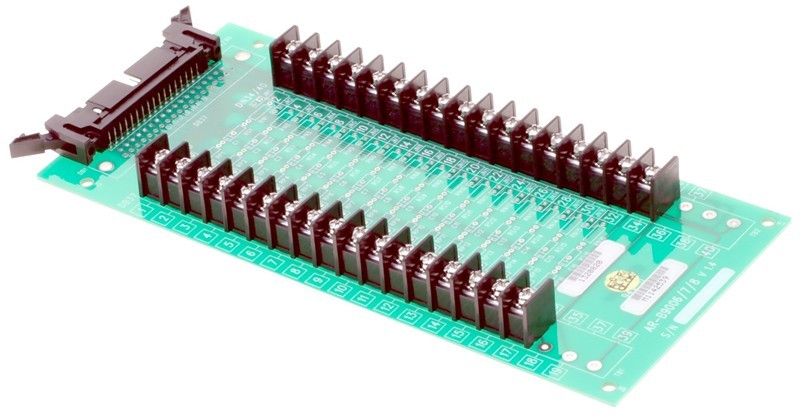

Terminal board with 34 screw terminals IDC 34 connection
433.00 kr
Ekskl. moms
Terminal card with screw terminals
IDC 34 male flat cable of 0.5m included
For DIN rail mounting
195 x 90 mm (W x L)
Quantity
Physically in stock
Ask a question
close
Specifications
| Dimensioner | 19,5 x 9 cm |
|---|---|
| Montering | |
| Stik | 34 polet IDC hun |

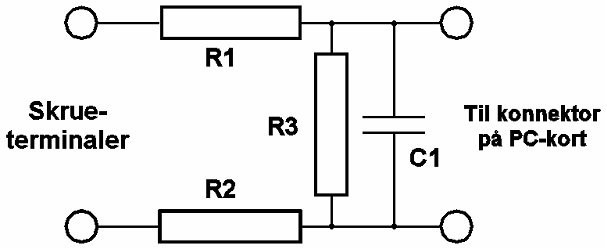

For each pair of cables, there is room for 4 components on the circuit board as shown here. At delivery, R1 and R2 of 0 Ohm and R3 and C1 are not mounted. Here, for example. mount voltage dividers, low-pass filters, shunt resistors for current measurement, overvoltage protection, current limiters etc.
Incl. ½ m flat cable
