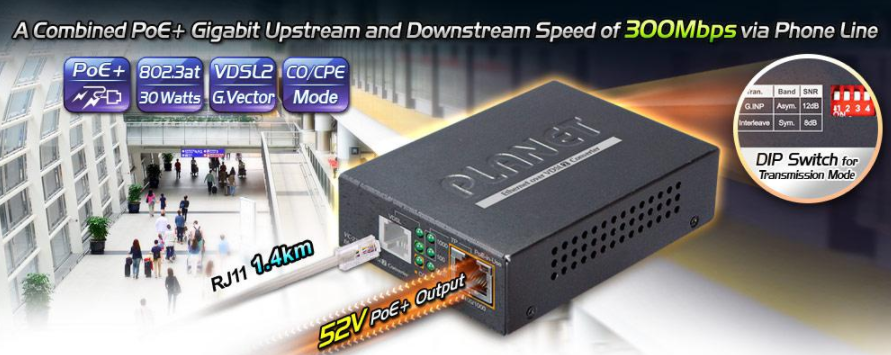

Ethernet over 2-wire connection. VDSL 10/100 / 1000mbit network up to 1.4 km, with PoE output.
1,900.00 kr
Ekskl. moms
Use 2 pcs. Eth-VDSL2 + for an Ethernet connection (Bridge)
up to 1.4 km Ethernet connection with 2 pcs. VDSL devices
Poe over 2-wire connection
1 x LAN 10/100 / 1000Base-T RJ45 Auto-MDI / MDI-X Port
1 x VDSL2 RJ11 She
Splitter for analogously Telephone connection included
Power supply: 54V / 0.74A included
POE + (30W) for eg. Access Point, IP camera.
Prepared for your mounting, wall mounting
Your fittings are purchased
Quantity
Ask a question
close
Specifications
| Dimensioner | 97 x 70 x 26 mm |
|---|---|
| Driftstemperatur | 0~50°C |
| ESD | 6KV DC |

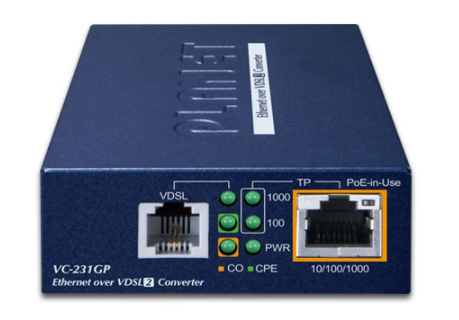

| LED | One Power, 3 for RJ-11/VDSL2, 2 for per RJ-45 10/100Base-TX port |
| Compositions | Metal |
| PoE | IEEE 802.3at PoE+ PSE, DC 52V, 30 watts |
| Porte | 10/100Base-TX： 1 RJ-45, Auto-Negotiation and Auto-MDI/MDI-X VDSL： 1 RJ-11, female Phone Jack PHONE： Additional Splitter for POST connection |
| Strømforsyning | DC 54V, 0.74A, medfølger |
| Weight | 206g |
Ethernet over telephone cable 1 x pair
Break the 100-meter limit by reusing existing paired phone lines, for example. between two buildings separated by a road, or between the stable and the dwelling for eg. video surveillance. Cables can still be used for telephony using the included RJ11 splitter.
DIP switch 1 is set to CO on one module and on CPE on the other.
