Ethernet over Coax cable, 1 km with PoE. Data and PoE via coax cable (25W)

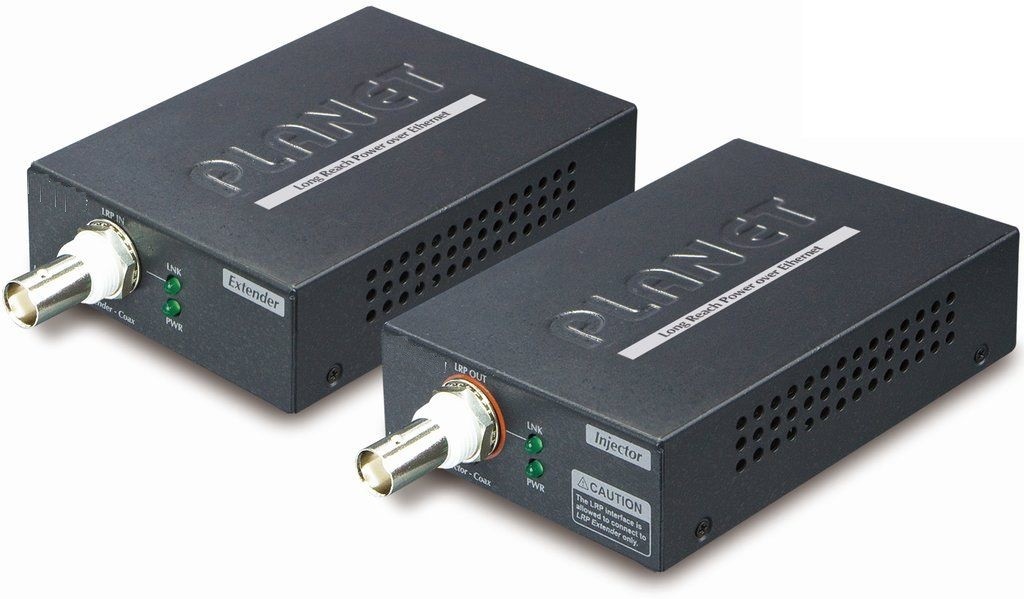

Ethernet extender over coax cable, 1 km with PoE. Data and PoE over Coax (25W). VDSL. Set of 2 units. Use 75 Ohm Coax

Name: Ethernet extender over coax cable, 1 km with PoE. Data and PoE over Coax (25W). VDSL. Set of 2 units. Use 75 Ohm Coax
Brand: Danbit A/S
SKU: ETH-VDSL-RG+P
Price: 2588 DKK
Availability: BackOrder

Product number ETH-VDSL-RG+PCategory VDSL Coax

2,588.00 kr

Ekskl. moms

1000 meter - network extender over coax cable.
Poe transferred in cable
1 x 10 / 100mbit base-TX RJ45
Auto-Negotiation / Auto-MDI / MDI-X
Poe Standard: IEEE 802.3AT / BY
PoE Output: 48-56VDC Max. 25 Watt
PoE Mode: End-Span, RJ45 Pin 1/2 (+), 3/6 (-)
1 x BNC Hun - RG59 Coax
Max. Distance: 200m w / Poe +, 1000m w / Poe, 1600m without Poe
Power supplied from 48-56VDC min. 2amp

Quantity

Get Volume Offer DOWNLOADS

Ask a question

Specifications

Dimensioner	94 x 70 x 26 mm (B x D x H)
Driftstemperatur	-20~70 C
Input	37~56VDC
PoE	48-56VDC, 600mA (max), op til 25W
Standarder	IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3af Power over Ethernet (802.3at Type 1), IEEE 802.3at Power over Ethernet (802.3at Type 2)

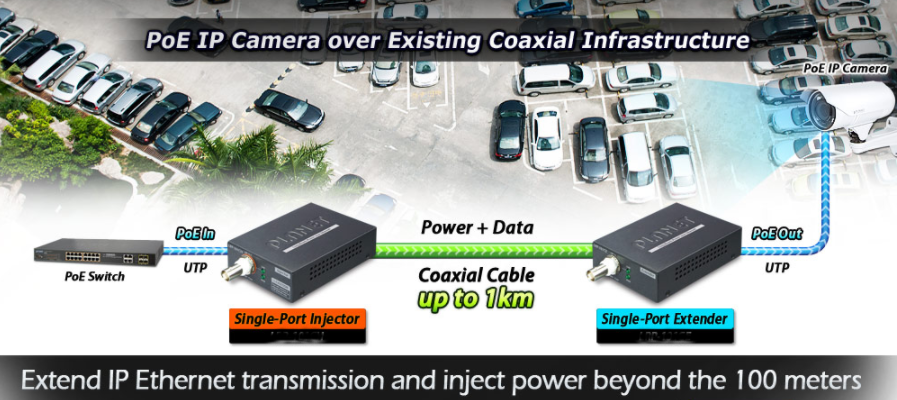

Eth-VDSL-RG + P is a single port 802.3at POE + LAN Extender, which provides a network connection of up to 1km with transfer of PoE via Coax cable. Suitable for use of existing coak cables from previous analog camera. Extenderes is a set and transmit both data and power simultaneously. Max. Distance without PoE is 1.6km.
A normal UTP cable can be maximum up to 100 meters. Eth-VDSL-RG + P, when connecting a PoE Injector or PoE switch, expand PoE networking up to 1,000 meters above 75 Ohm coaxial cable (RG59) and delivering stable, high quality video transmission. The device eliminates the need to install an additional power outlet.
Plug-N-Play installation.
