Ethernet Extender up to 1.4 km above Coax cable with Vdsl. 300Mbps. VDSL where WiFi provides unstable data connection

Ethernet Extender up to 1.4 km over Coax cable with VDSL. 300Mbps. Stable Network Connection where WiFi fails

Name: Ethernet Extender up to 1.4 km over Coax cable with VDSL. 300Mbps. Stable Network Connection where WiFi fails
Brand: Danbit A/S
SKU: ETH-VDSL-RG+G
Price: 1626 DKK
Availability: BackOrder

Product number ETH-VDSL-RG+GCategory VDSL Coax

1,626.00 kr

Ekskl. moms

Break 100 meter border with VDSL over RG59 Coax cable
1 x RJ45 10/100 / 1000Mbit
Up to 300mbit / s - duplex (automatic speed optimization)
Unroubing Data connection
Temperature: 0-50 ° C
5VDC 2A Power supply included
75Ω cable must be used
Use 2 pcs. Eth-VDSL-RG + G to a connection

Quantity

Get Volume Offer DOWNLOADS

Ask a question

Specifications

Dimensioner	70 x 97 x 26mm
DIP Switch	4 x position DIP switch
Features	CO (master)/ CPE (slave). Valgbar fast / interleaved mode. Valgbar datahastighed. Valgbar S/N mode
Kabel	Ethernet: UTP/STP Ethernetkabel. VDSL: RG58, RG59 eller lignende
Porte	10/100/100 Base-T. 1 x RJ45. VDSL. 1 x BNC port.
Strømforsyning	5 VDC 2A, strømforsyning medfølger
Temperatur	0-50°C
Weight	185g

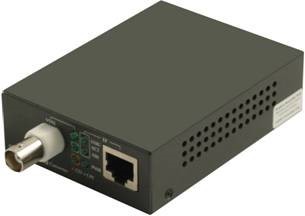

Ethernet to VDSL converter via coax.
Connect network of 75Ω coaxial cable - up to 1.4 km.
150Mbps up-stream 150Mbps downstream

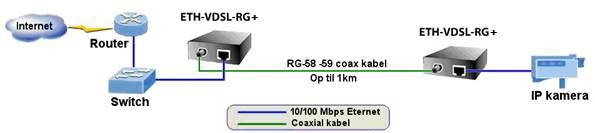

Use the existing coaxial cable to an Ethernet connection, without having to pull new cables. The converter has an RJ45 10/100 / 1000T port and a BNC connector that can connect RG59 75Ωcoax cable. How can a network using the existing cabling. Furthermore, several IP cameras share a coaxial cable with an Ethernet switch connected.
