VGA Extender booster, requires no power. CAT 5/6 PDS cable between transmitter and receiver

VGA passive extends up to 100 meters via network cable. Max. 1280 x 1024, no power connection

Name: VGA passive extends up to 100 meters via network cable. Max. 1280 x 1024, no power connection
Brand: Danbit A/S
SKU: BOOST-VGA+MF
Price: 913 DKK
Availability: BackOrder

Product number BOOST-VGA+MFCategory VGA

913.00 kr

Ekskl. moms

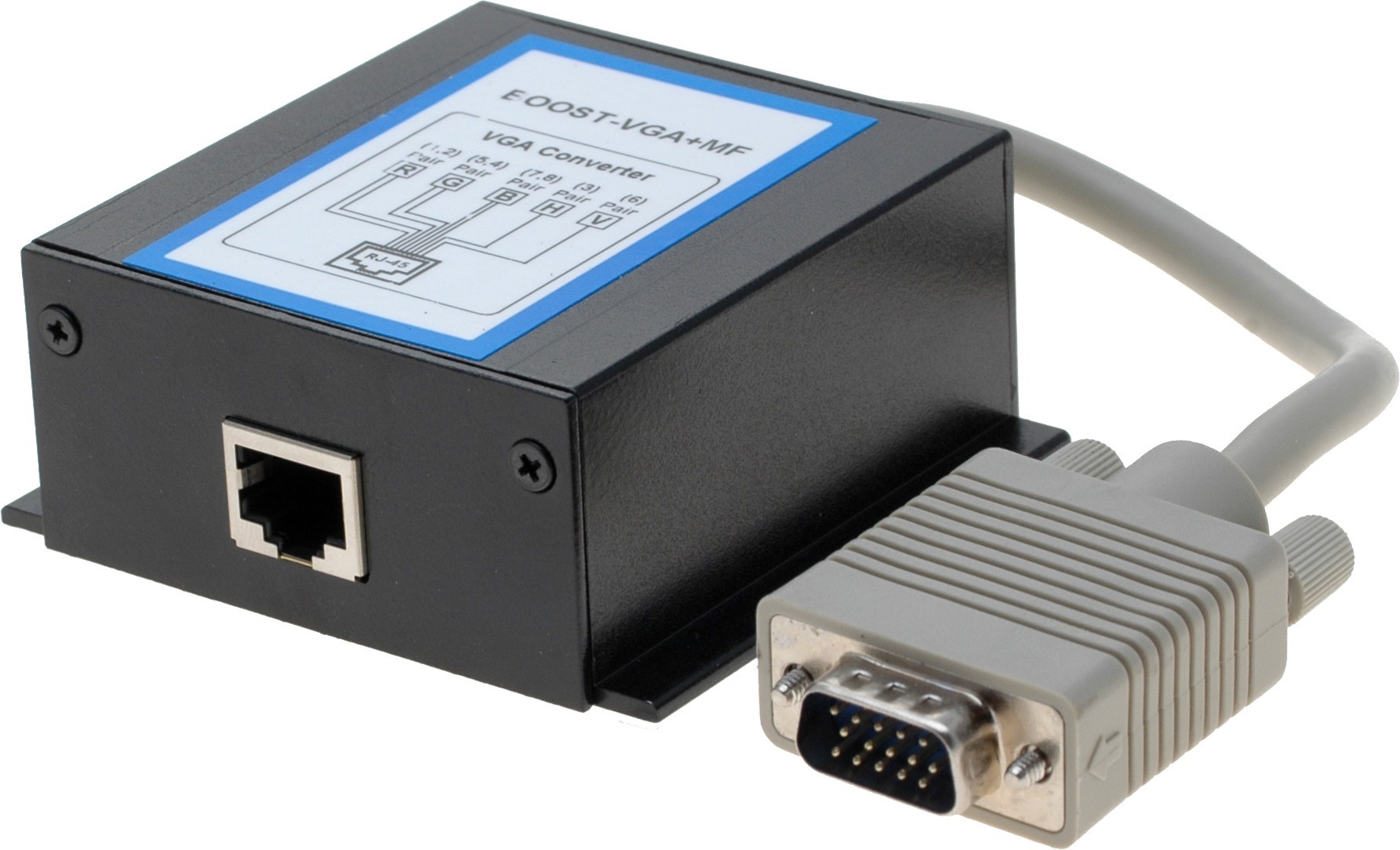

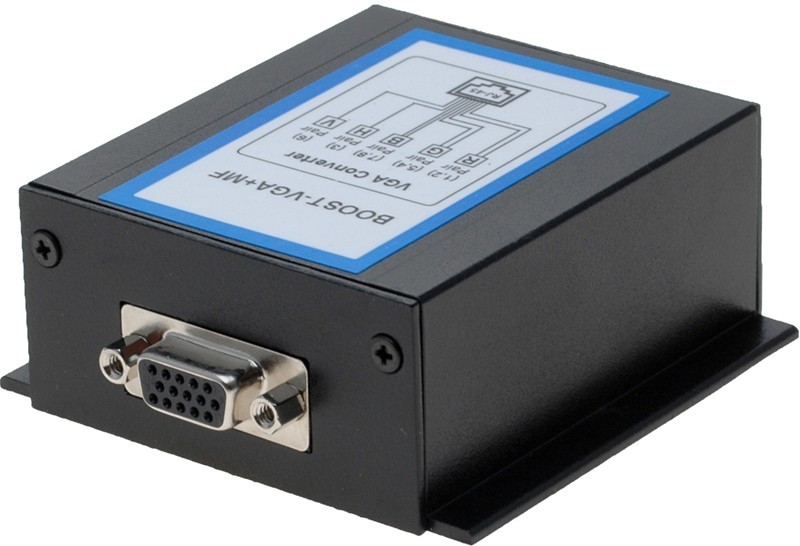

Passive VGA Extender Over Point to Point Network Cable
Complete Set With Sender and Receiver Box
Up to 100m. Just through PDS cable (paired cable) - Do not connect network switch
Max. 1280 x 1024 pixel
Balun principle - unbalanced / balanced
Critical with network cable quality.
Supports only UTP network cables, cat. 6 or better
More noise immunity than active extenders.
No power required

Quantity

Get Volume Offer DOWNLOADS

Ask a question

Specifications

Afstand	Afstand op til 100 meter mellem sender- og modtagerboksene
Dimensioner	32 x 79 x 71 mm
Kabel	CAT5~7 UTP kabel
Opløsning	Op til 1280 x 1024
Stik	1 x RJ45 stik, 1 x DB15HDF (VGA) stik.
Strømforsyning	Kræver ingen strømforsyning da den er opbygget af passive komponenter

Dimensions 32 x 79 x 71 mm.
Stik1 x RJ45 connector, 1 x DB15HDF (VGA) connector.
Resolution up to 1280 x 1024 pixels
Cable CAT5 ~ 7 UTP cable
Distance up to 100 meters between the transmitter and receiver boxes
No power required as it is built of passive components
