2 inputs for Strain Gauge, 1 x excitation output, 1 x digital in, 4 x digital out, RS485 bus, Display.
1,200.00 kr
Ekskl. moms

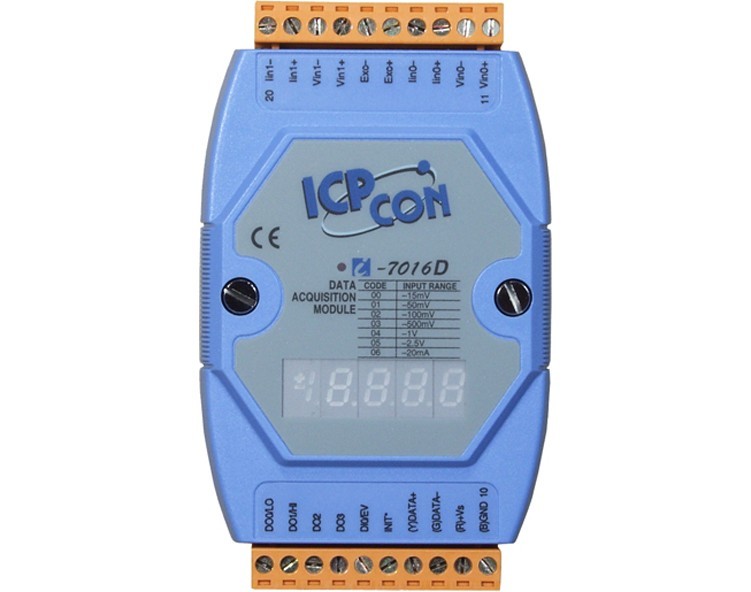

RS485 Module for load cells
2 analog inputs for 4 wire load cell,
1 excitation Exit
1 Digital input
4 digital outputs
Supply: 10 - 30VDC
Quantity
Physically in stock
Ask a question
close
Specifications
| Forsyning | 10 - 30 VDC, 2,2 W via klemrække |
|---|---|
| Indgangsimpedans | 2 MΩ |
| Isolation | 3000 VDC |
| Maks. hastighed | 10 pr. sek. |
| Opløsning | 16 bit, ±0,05 % præcision |
| Skærm | 4½ ciffer display |
| Stabilitet | Nulpunktsdrift: ±0,6 µV/°C Drift af følsomhed: ±25 ppm/°C |
| Udgange | 4 stk. “Open collector”: 30 VDC, 30 mA 12 bit: 0-10 V 0,05 % af FS Drift af følsomhed: ±50 ppm/°C |
In the industrial environment, there are many examples where force is to be converted to a measurable electrical output.
In most cases, a strain gauge bar meter in a load cell is used. But the question is, how should we handle these electrical output measurements? In this situation, the M485-AD16DA12 ID certainly is the best choice. Not only can the module process data from a load cell or bar meter, it also has linear mapping that can be used to directly convert the resulting data to weight via a custom correspondent table. M485-AD16DA12 ID supports full-bridge voltage meters and provides 2 analog input channels, 1 excitation voltage output channel, 1 digital input channels and 4 digital output channels. The module has a programmable input range (± 15 mV, ± 50 mV, ± 100 mV, ± 500 mV, ± 1 V and ± 2.5 V), and each analog input channel can be configured individually. Excitation voltage output may be in the range 0 ~ +10 V with a driving efficiency of 40 mA. Digital output channels can also be set as high or low alarm outputs.
