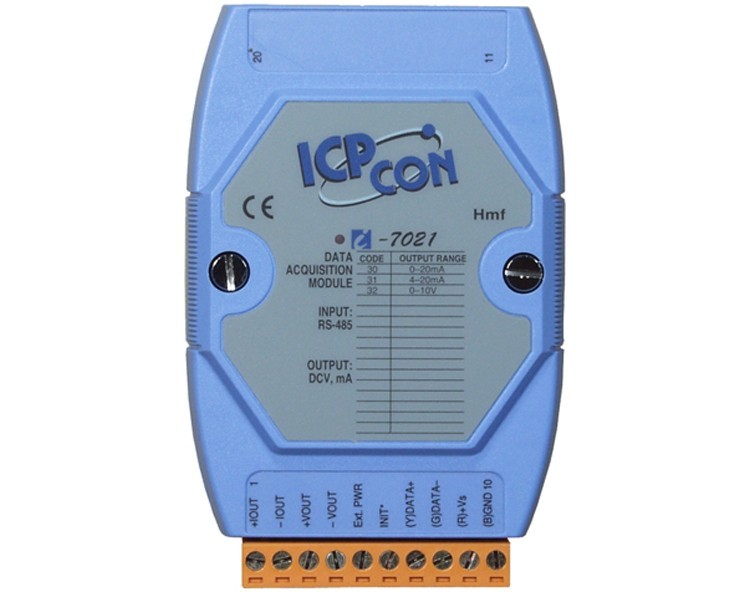

1 x analog output, 0 to +10 volts, 0-20mA, 4-20MA, 12bit, RS485

Name: 1 x analog output, 0 to +10 volts, 0-20mA, 4-20MA, 12bit, RS485
Brand: Danbit A/S
SKU: M485-DA12-I
Price: 1958 DKK
Availability: InStock

Product number M485-DA12-ICategory Via RS485 bus

1,958.00 kr

Ekskl. moms

Power or Voltage Output
0 - +10VDC, 0 - 20mA, 4 - 20mA
Resolution: 12-bit
Software Selectable Power or Voltage Output
Output Cable Detector for Power Output (4 - 20mA)
Backlink Voltage or Current
Configurable Power-on Value
Configurable Safe Value
3000 VDC Intra Module Isolation
Programmable Output Slope
Dual Watchdog
Temperature Range: -25 to +75°C

Quantity

Physically in stock

Get Volume Offer DOWNLOADS

Ask a question

Specifications

Forsyning	10 - 30 VDC, 1,4 W
Isolation	3000 VDC
Opløsning	12 bit, ±0,1% præcision(mA) ±0,2 % (V)
Stabilitet	Nulpunktsdrift: Spænding: ±30 µV/°C Strøm: ±0,2 µA/°C. Kontrolmåling af udsendt værdi: ±1 % Drift af følsomhed: ±25 ppm/°C
Udgange	0 - 10 V, 0 - 20 mA, 4 - 20 mA

M485-EN12-I have a 12-bit analog output designed for both voltage and power output. Output can be selected either internally or externally via a jumper. There are also options to set boot and secure values. Both support DCON protocols that can be configured via software.
