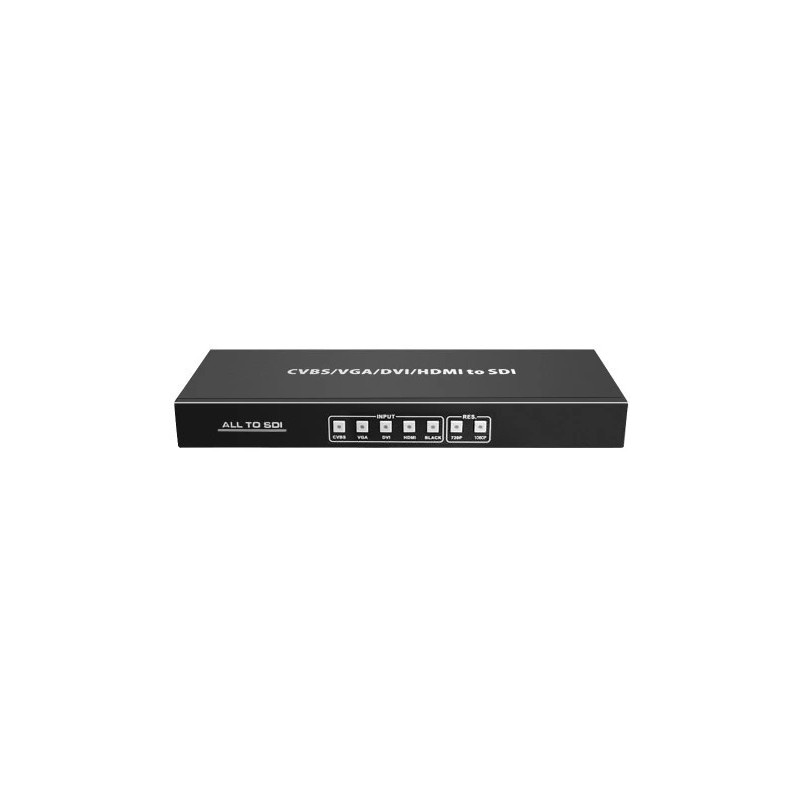

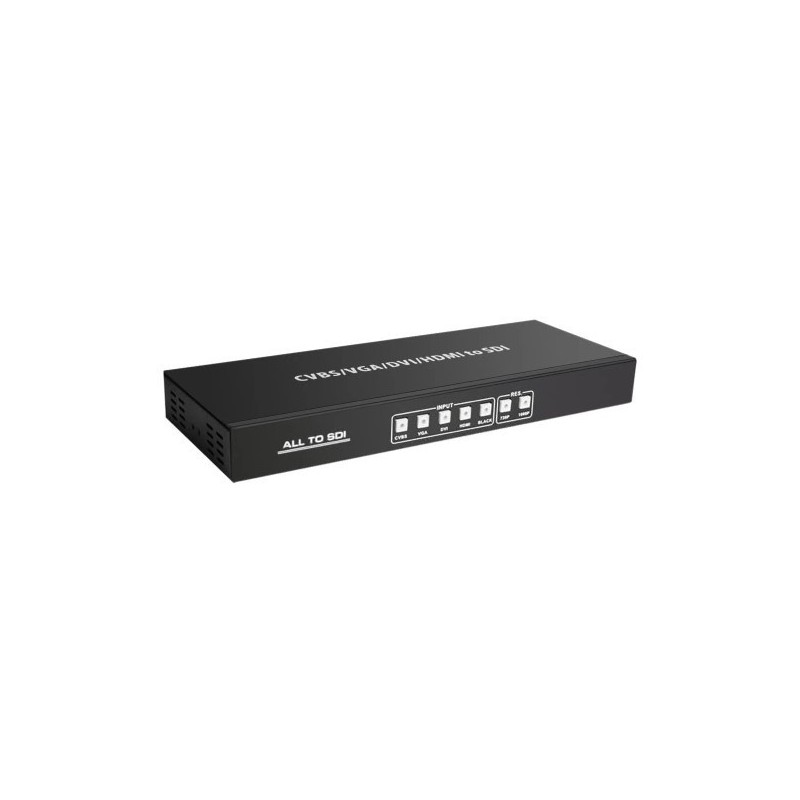

Convert from Composite Video (BNC), VGA, DVI and HDMI to HD-SDI, 3G-SDI

Product number CNV-SDI-MULTICategory Video converter / Adapter
Call +45 56 66 20 20 for price
Ekskl. moms

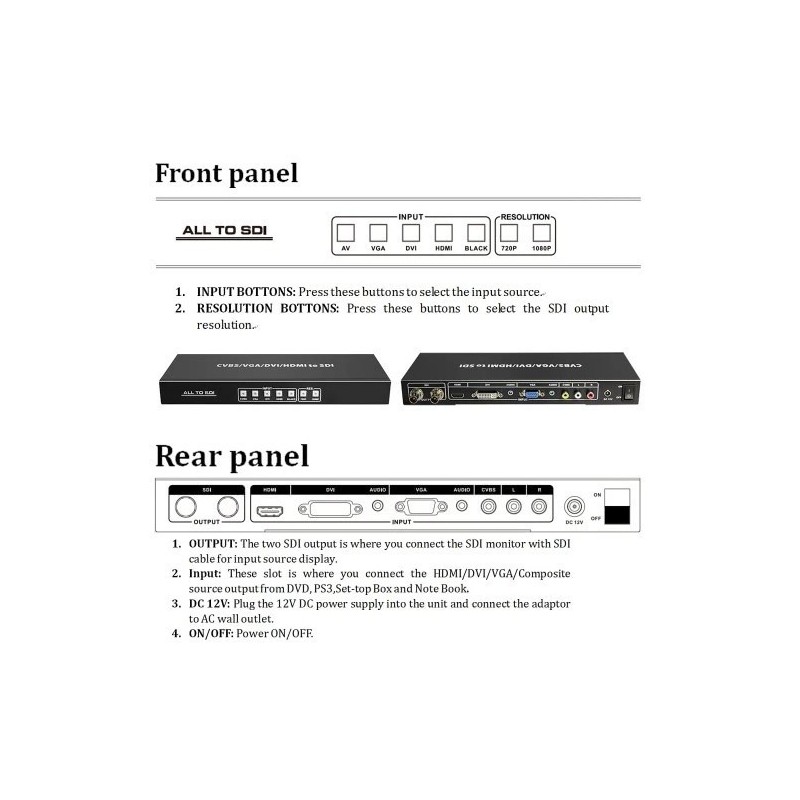

Multi format Video format Convert to SDI

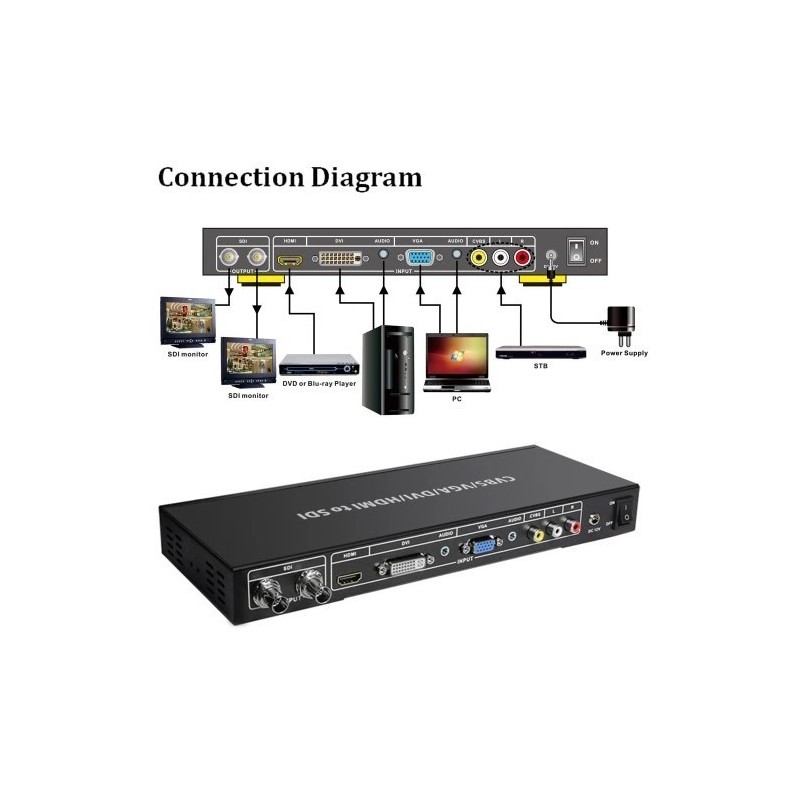

Video In: HDMI, DVI, VGA and Composite Video (BNC / RCA)
2 x SDI output simultaneously
SDI output up to 100 meters at 3G- SDI or 200 meters at HD-SDI
Scales input signal for HD-SDI or 3G-SDI
HD input: VGA @ 60Hz ~ SXGA @ 60Hz 480i ~ 1080p @ 60Hz
VGA / DVI Input Timing: VGA @ 60Hz ~ 1920 × 1080 @ 60Hz.
Composite video input: NTSC, Pal, Secam
Supports black screen Signal output.
12VDC / 2.5A Power supply included
Size: 288 x 110 x 32 mm

Quantity
On the way in
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål



Specifications

Driftstemperatur 0˚C ~ 40˚C / 32˚F ~ 104˚F
Input 12V
Strømforbrug 5W
Weight 866g

SDI scaler convert CVBS VGA DVI HD to HD-SDI 3G-SDI Signal
Everything to SDI Scaler Converter allows you to upscale Composite, VGA , DVI, HD signals for HD Video of SDI formats (HD-SDI SMPTE 292M or 3G-SDI 424m / 425m) and then output to both ports at the same time.
