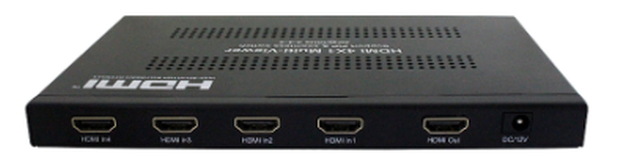

4K HDMI 4:1 QUAD Multi Viewer, 4 images on 1 screen, single image, PIP etc. 4 x HDMI input, 1 x HDMI output, 4K30Hz
1,782.00 kr
Ekskl. moms
4 x HDMI inputs for 1 HDMI output

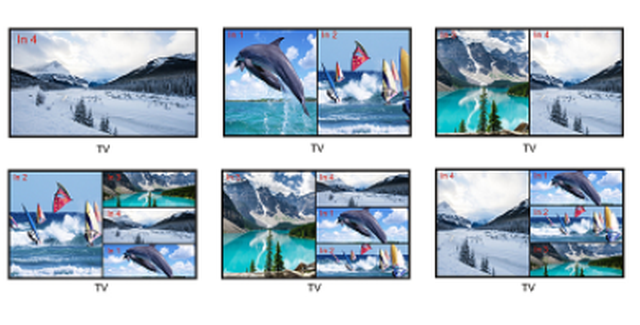

The 4 inputs can be combined into 10 variants
Seamless switching of HDMI signal
Supports Audio switching
Resolution: up to 4K@30Hz input
Supports IR remote control
Push buttons on the front for output mode selection
Bandwidth: 6.75Gbps
Operating temperature: 0 - +40°C
Supply voltage: 12VDC PSU included
Power consumption: 8 Watts
Cable distances, max.: Input 8m, output 10m
Dimensions: 191 x 113 x 17 mm
Weight: 480g
Quantity
Ask a question
close
Specifications
| Båndbredde | 6.75Gbps |
|---|---|
| Driftstemperatur | 0 - +40°C |
| Forsyning | 12VDC, 8Watt, strømforsyning medfølger |
| Indgang | 4 x HDMI - op til 4K@30bps |
| Kabinet | Metal |
| Mål og vægt | 191 x 113 x 17 mm, 480g |
| Video | 1 x HDMI med op til 10 billede-kombinationer 576i, 576p, 720p, 1080p, 1080i, 3840 x 2160 |

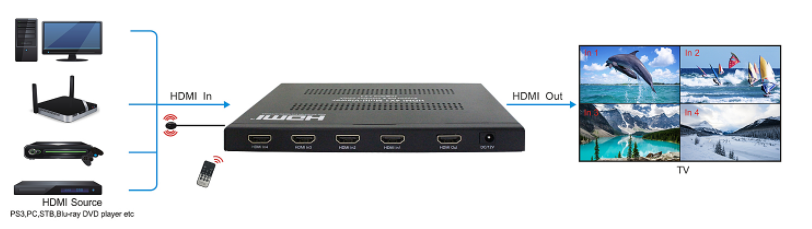

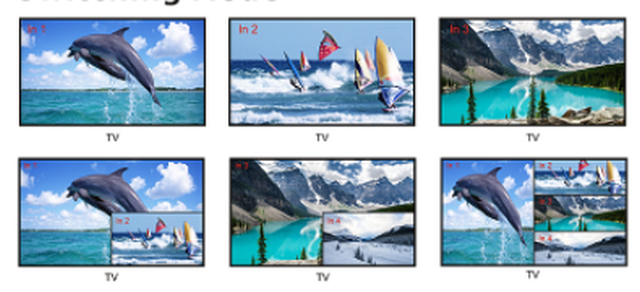

HDMI4X1MULTI makes it possible to display 4 HDMI sources on 1 screen. Displays up to 10 different image combinations, or switch between each individual image. You can decide yourself how the pictures should be arranged
